ENABLES

• To record directional radiation patterns
• To measure gain in swept frequency band
• To check and set ellipticity
• To set and measure differential phase and amplitude
• To set and optimize the SWR and through-way attenuation

MEASUREMENT OF ELECTROMAGNETIC COMPATIBILITY

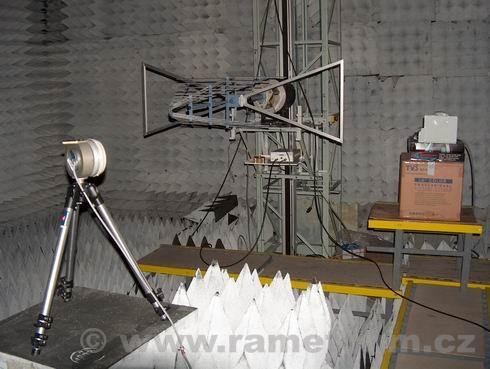

• Measurement of radiated interfering field in a frequency band from 30 MHz to 3 GHz in a screened anechoic chamber
• Measurement of interfering signal on power line or output clamps in a frequency band from 9 kHz to 30 MHz
• For all measurements standardized detectors of peak, quasi-peak and mean value can be used

DIAGNOSTIC CENTRE OF LOW-  AND HIGH FREQUENCY TECHNOLOGY ALLOWS TO:

• Test climatic resistance (VC3 7150 climatic chamber – Vötsch Industrietechnik)
  - temperature range: -70°C ÷ 180°C
  - humidity range: 10%  ÷ 98%  under temperatures ranging from 10 to 100°C
  - test room dimensions: H 950 x W 1060 x D 1475 mm
  - programmable controlling of temperature and humidity courses

• Measure temperature courses and dependences (MS5 – Comet system)
  - measurement of temperature and humidity courses at several points with a possibility of data recording

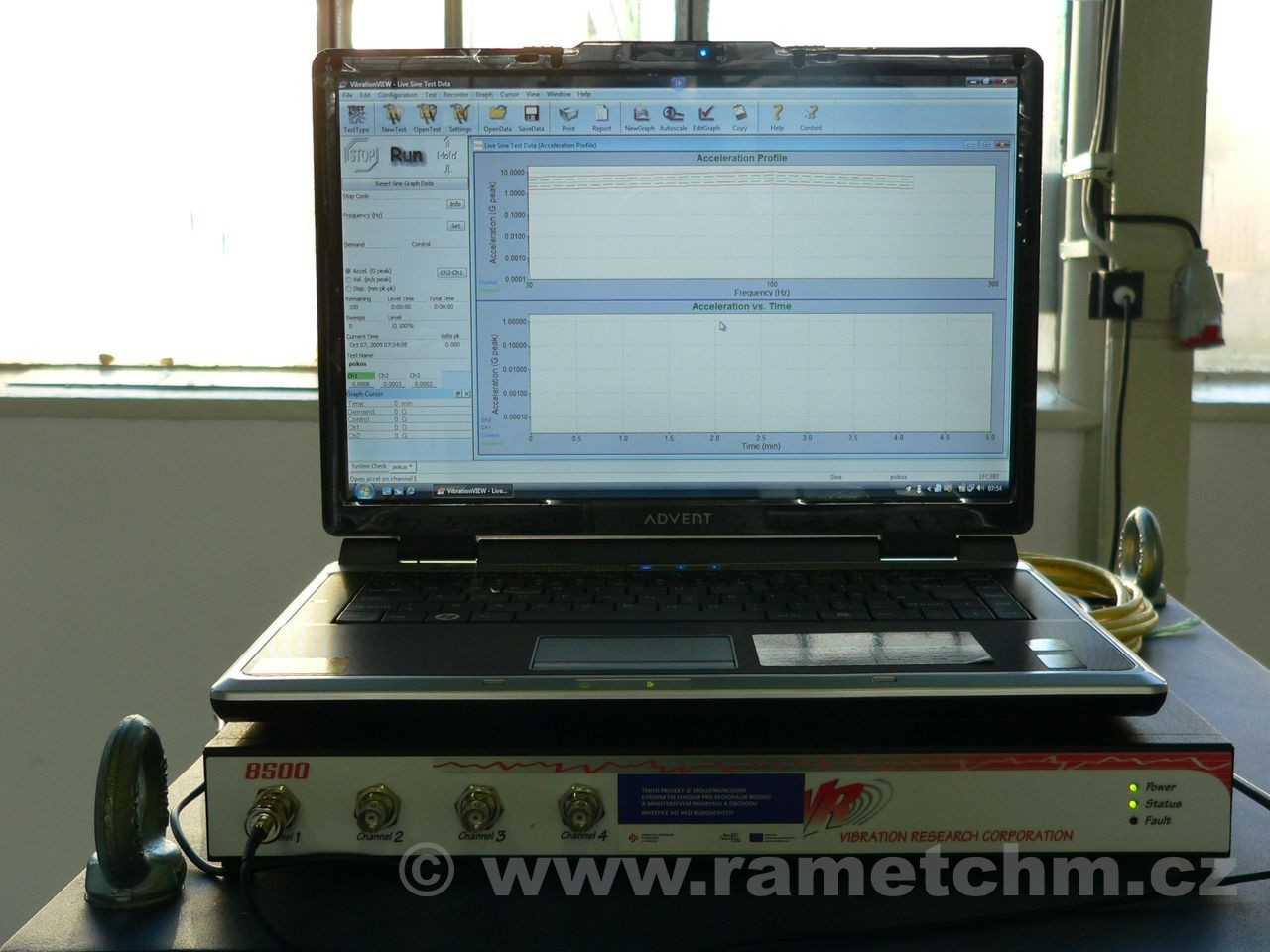

• Perform mechanical vibration tests (L620M – ETS solution)
  - frequency range: 0 ÷ 3500 Hz
  - maximum double amplitude: 51 mm
  - maximum force applied for sinusoidal vibrations: 6000 N
  - maximum acceleration for sinusoidal vibrations: 100 g
  - load-carrying capacity of vibration exciter: 300 kg
  - ability to generate harmonic oscillation, or mechanical  vibrations defined by a client

• Measure microwave parameters (FSU50 + FS-Z75 + FS-Z90 + FS-Z110, N5531S)
  - measurement of amplitude-frequency qualities of oscillators and generators up to a frequency of 110 GHz
  - measurement of absolute value of microwave signals up to 44 GHz from -140 dBm

• Measure DC/AC voltage and resistance (3458A)
  - 8˝ digit multimeter available, enabling signal sampling at a speed of as much as 100 kS/s

DESCRIPTION

The antenna range is designed for far-field measurements of antenna systems in free space.

MAIN FEATURES

• NSI-RF-PNA20-001 RF system employed
• Makes it possible to collect data at 40 frequencies simultaneously
• Frequency range of measurement from 800 MHz to 20 GHz
• Dynamic measurements (40, 60, 80, 100 dB)
• Distances available for measurement: 1 024 m or 70 m
• Maximum weight of the antenna to be measured: 4000 kg

ALLOWS TO MEASURE

• Radiation characteristics in E- and H-planes in far field
• Gain
• Ellipticity
• Polarization characteristics

• WARNS-1 small warning searcher
• SRS-4M small radar searcher
• MRTP LIGHTWEIGHT PASSIVE DIRECTION EMS SYSTEM
• SDD radar signal monitoring station
• Passive search system BORAP
• USC-1 textbook simulator of radar targets
• TSC-1 field target simulator (false target)

AD9 police radar speedometer measures and documents exceeding of speed limits by passing vehicles, both incoming and outgoing, based on Doppler radar.

If the passing vehicle exceeds the preset limit speed, it is digitally photographed automatically. The resulting digital picture is saved and it contains the image of the measured vehicle, direction of travel, measured speed, date and time.

Immediately after measuring, the vehicle is displayed on the unit screen. The image can be used to document the offense and to verify the quality of the acquired documentation.

For further processing, the radar images can be copied to memory media or transferred to a computer via network. Using ARCHIV 3.0 archiving program you may process and archive all images for long periods of time.

All types of the device have compact design and are easy to operate. All required parameters are selected from the touch screen, which also serves as a monitor.

AD9 radar speedometer is made in several versions marked as AD9 T, AD9 C, AD9 O and AD9 P. These versions differ in design.

ARCHIV 4.x software is designed for viewing and processing of images taken by AD9 and RAMER 7 traffic control radars.

These images are taken when the vehicle exceeds the speed limit, commits a parking offence, or other offences. Individual images are archived in the database on the disk of the archiving computer. The application includes functions for graphical processing of the images to acquire information required for vehicle identification. The program also contains generic elements of data protection against misuse.

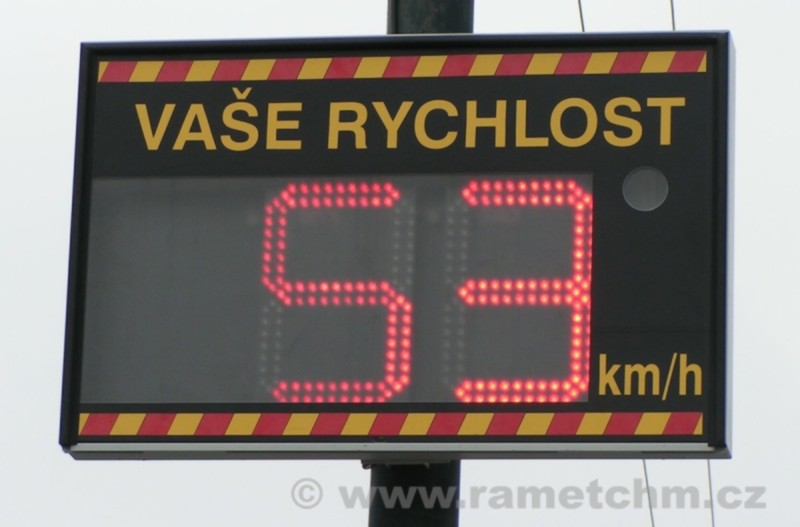

RAMER 8RS LED info board is an information radar speedometer, based on the principle of Doppler radar, and the speed is displayed using highly luminescent diodes.

The LEDs brightness automatically decreases with decreased visibility to avoid blinding the driver. When a car whose speed exceeds the preset limit is passing, the speed indicating digits start to flash. To avoid uncomfortable and dangerous reflections from headlights and from the sun, the front cover is covered with anti-reflexive surface coating.

RAMER 8RS information board is ideal for mounting to posts with permanent power supply (230 V), and it can also be mounted on public lampposts.

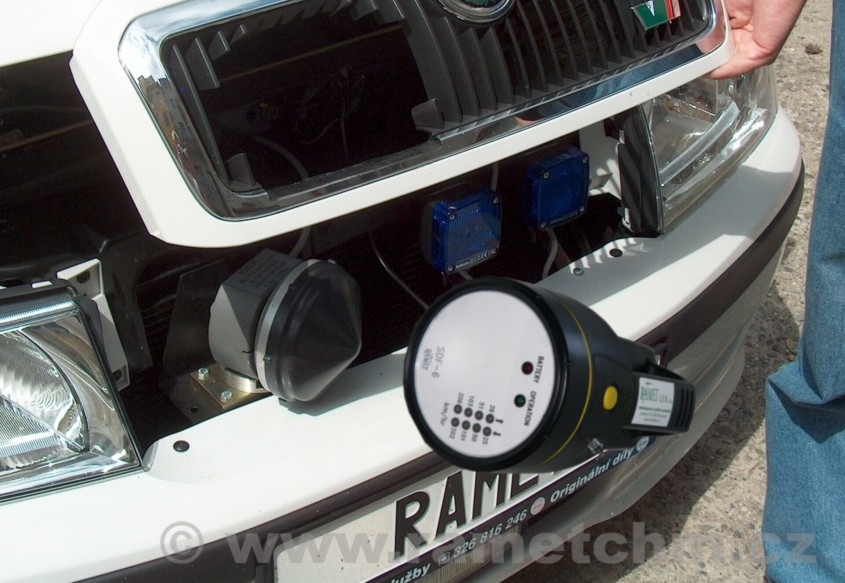

HF simulator is a test unit that verifies correct functioning of AD9 speedometer.

Basic features of the HF simulator include high frequency stability and easy operation. RAMET C.H.M. a.s. offers the HF simulator in two versions. Version SDF-4 is meant for the radar with the frequency of 34 GHz, version SDF-6 for the radar with the frequency of 34.3 GHz.

The simulator is designed as a portable device for checking of the radar speedometer with the parabolic antenna. It is installed in a plastic case. The simulator is able to generate four incoming and four outgoing speeds. The HF simulator is powered by four LR20 alkaline batteries.

The HF simulator is started by a switch. It is controlled by a single "FUNCTION" button, which switches the generated speeds in cycles.

There are 10 indication LEDs on the front panel, indicating the following statuses:

• Green LED indicates normal functioning of the HF simulator
• Red LED indicates empty battery (battery must be replaced)
• 8 x yellow LED indicates simulated speeds

MAIN FEATURES

• Coherent receiver and transmitter, digital system of processing radar signals supporting  a high probability of target detection by primary radar;
• Fully solid-state air-cooled transmitter;
• Linear and circular polarization for increased target detection under deteriorated weather conditions;
• Digital signal transformation and compression to provide high stability;
• Processing of weather info (upon request);
• Adaptive tuning of parameters of digital receivers to minimize false alarms;
• Built-in system for initial processing of data received both from the primary and secondary radar;
• Built-in system for processing data on target trajectory obtained both from the primary and secondary radar;
• Diagnostic CMS to provide continuous remote monitoring of operation;
• BITE to automatically monitor condition of individual PSR MORAVA units;
• Automatic backup;
• Recording, restoring and statistical analyses of radar information;
• Unattended operation;
• Price/performance ratio ranks among the most favourable in ATC market

• Antenna systems for survey, landing and approach radars
• Telecommunication antennas
• Antennas for reception of TV signal
• Antennas for special products
• Radio-transparent covers
• Microwave technology
• Setting, control and measuring of antenna system parameters
• Mast TVS 20
• Mast TVS 30
