Last Update August 21, 2019

Categories

  • Electrical, Electronics & Electro-optics
  • Military, Tactical, Logistic Support Vehicles & related equipment
  • Other Aerospace, Defence and High Technology related companies

DFV, stands out their active participation in developing the field of microsurgery in Brazil. Over 50,000 surgical microscopes produced by DFV are now installed in hospitals and clinics in Brazil and 66 other countries. With a new management team, the objectives are to maintain the tradition of the company and to improve our services further on to meet the demanding market of microsurgery. Keeping this segment supplied of all over the world. DFV’s products are essential in microsurgery in various medical specialties such as: Neurosurgery, Gynecology, Dentistry, Ophthalmology, ENT and Veterinary.

HISTORY

Decio Fernandes de Vasconcellos (born 1908) have founded the company, which currently ranks first in its industry. The DFV was founded in April 1941, in São Paulo (SP). The first 10 years were dedicated exclusively to the manufacture of military instruments, acquiring and developing technology in such areas as precision mechanics and optics, a pioneering initiative that laid the groundwork for the Brazilian independence in this sector.

From 1951 on, the company entered the civilian market, producing prismatic binoculars and magnifying glasses and some models of loupes, gradually evolving its production to reach a diverse line of high precision optical instruments, particularly for use in medicine.

Today, DFV stands by his active participation in developing the field of microsurgery in Brazil, starting by design of their first surgical microscope, launched in 1962. Over 50,000 surgical microscopes produced by DFV are now installed in hospitals and clinics in Brazil and 66 other countries.

In 2009, the company took a new direction. The new goals are to maintain the tradition of the company and improving for a better service in the demanding market of microsurgery. Supplying this segment all over the world. Keeping the continuous search for excellence in optical precision and reliability of equipment that has characterized the company since 1941.

DFV has just concluded the project of its new plant.

The entire productive process was designed in a logical format, in order to improve even more our products quality. The modern plant is coming to substitute with enhanced efficiency the old plant in São Paulo, which process was not supporting any longer the market demands.

The new plant is established in Valença, in Rio de Janeiro state. Valença is a city in between the 3 major market centers in Brazil (Rio de Janeiro, Sao Paulo and Belo Horizonte). This also means that it enable facilitating the exportation process of DFV.

Contact info #1

Gilberto Barral
+55 11 5586 7902
Industrial Director
+55 11 2872 4742
R. Vergueiro, 1353, 6o andar – Cj. 610 – Torre Norte – Vila Mariana, Sao Paulo – SP – Zip code: 04101-000, Brazil

Contact info #2

Dario Neto
+55 11 5586 7900
Industrial Engineering & Quality Control Manager
+55 11 2872 4742
R. Vergueiro, 1353, 6o andar – Cj. 610 – Torre Norte – Vila Mariana, Sao Paulo – SP – Zip code: 04101-000, Brazil

PERISCOPES FOR ARMOURED VEHICLES

PERISCOPE PE-M27 FOR WHEELED ARMORED MOD. M113

  • With protection absorption filter against laser beams
  • Keeps the user’s eyes protected in case of shots (ballistic protection)
  • Filled with Nitrogen
  • Protection curtain avoids view from outside
  • Waterproof

PERISCOPE PE-M105 FOR WHEELED ARMORED SK 105 A 2S

  • With protection absorption filter against laser beams
  • Keeps the user’s eyes protected in case of shots (ballistic protection)
  • Filled with Nitrogen
  • Protection curtain avoids view from outside
  • Waterproof

PRISMATIC BINOCULAR PIONEIRO 6x30 MILITARY TYPE

  • The binocular optical pieces are provided with anti-reflex coating.
  • It is provide by a millesimal graduated article for distance valuation.
  • The aluminum metal pieces are protected against corrosion.
  • This binocular is supplied with a leather case and a leather strip to carry it.

COMPASS GONIOMETER

  • It has a reticle for distances valuation.
  • With illumination devices for night use.
  • Millesimal graduated scales.
  • Supplied with tripod and appropriate case for march transportation.

DAYLIGHT SIGHTING SCOPE LE-M5 / LE-M6

  • Used for automatic rifles FAL (LE-M5) and HK – 5,56 mm (LE-M6).
  • A cross-hair line reticle provides target aiming point reference, target location and bore sight of the rifle.
  • Exclusive controls allow reticle adjustment in elevation and azimuth.
  • Adjustable diopter eyepiece compensates observers’ visual acuity.

REFLEX GUN SIGHT VR-M10-E

  • The reflex gun sight VR-M10-E is built for using in training airplanes and aircrafts equipped with AIR-AIR and/or AIR-GROUND armament.
  • The horizontal direction of the sight’s linear opening allows the aiming field binocular observation, even in conditions of sensible movement between the observer and the sight, during a turbulent flight.
  • The sight can be tightly fixed and easily replaced by screws fixed at the base of the sight

AIR-GROUND WEAPON SYSTEM ROCKET MOTOR SBAT 70 (2,75 INCH) M4B

  • Manufactured according to Military Standards
  • Equivalent to the 2,75 inch FFAR Mk 40 Mod. 3
  • Compatible with 70 mm ( 2.75 inch ) Rocket Launchers

SBAT 70 M4B ROCKET MOTOR

  • The Rocket motor is the main air-ground weapon system 70mm (2.75”) component.
  • The propellant grain is an extruded hollow cylinder made from double base compositions and coated by and inhibit material. Four retractable fins allow a straight-line trajectory stabilized.
  • The Warheads can be assembled manually in a single and safety procedure. It also can be loaded easily into the launcher.

AC (HEAT) WARHEAD WITH FUSE FAC M21

  • The AC Warhead is used for training and ground attack mission.
  • Its major feature is the extraordinary penetration of steel armor, which is obtained by the hollowcharge effect, used against tanks, convoys, railroads and ships.

AP WARHEAD WITH FUSE FAP M28

  • The AP Warhead is utilized for training and ground attack missions.
  • Its major feature is the extraordinary fragmentation power and is used against mobile targets, like troops, parked aircrafts, convoys and small boats.

PRACTICE WARHEAD

  • Used for training purposes. When assembled to the Rocket it belongs to the Air-ground weapon system 70mm ( 2.75” ).

MILITARY TELESCOPE LO-M9

Provided with tripod easy to carry

  • Micrometric height movement.
  • 360º articulated.
  • Supplied with a leather case.

MECHANICAL FUZE EOM-BINC

  • For 200 e 300 kg incendiary bombs.
  • Installed in the bomb’s warhead and tail.
  • Functioning by impact in any incidence angle at the target.
  • Three security mechanic lock systems of the explosive train.
  • Timer mechanic system for liberation of the cursor after bomb launch.

MECHANICAL FUZES FOR BOMBS ECM-BFG / EOM-BFG

MECHANICAL FUZE FOR BOMBS EOM-BFG

  • For bombs BA-FG-120, BA-FG-230, BA-FG-460 and north-american similar MK81, MK82 e MK83.
  • Arming mechanism with time selection in the range from 2 to 18 s.
  • Cursor start by impact.

MECHANICAL FUZE FOR BOMBS ECM-BFG

  • For bombs BA-FG-120, BA-FG-230, BA-FG-460 and north-american similar MK81, MK82 e MK83.
    Arming mechanism with time selection in the range from 2 to 18 s.
    Cursor start by inertia.

OPTICAL PARTS AND COMPONENTS:

  • High precision lenses: glass and acrylic
  • Mirrors and beam splitters: with chromium, multi layers and protector coating
  • Interference coatings
  • Precision prisms: right-angle, dove, penta, roof, equilateral dispersion, edge and special-to-meet requirements
  • Optical standards: flat and spherical
  • Objectives: for microreaders, copy machines, projectors and under special requirements.

MICROSCOPE - MC M1232 LINE

The many ways to set up this line of microscopes make it the most practice and cost wise in the market. The MC-M1232 line of surgical microscopes brings the DFV quality, acquired in more than 60 years in optical equipment. DFV has the most renowned physicians and hospitals all over the world as customers, which allow us to gain great knowledge in microsurgery equipment.

Check our models below:

  • MC M1232 – floor estate – 5 magnifying stages
  • MC M1233 – wall estate
  • MC M1235 – estate fixed on floor
  • MC M1236 – floor estate – 3 magnifying stage

Technical specification

Optical Head:

  • With 3 (5x, 8x and 13x) or 5 magnifying positions (3x, 5x, 8x, 13x, 20x)
  • Tilted binoculars 45o
  • Objective diameter 42mm with 250mm focus
  • Interpupillary distance adjustment of 55 to 75mm
  • Observation field from 66mm to 11mm wide
  • Manual microfocus
  • Orange filter
  • Cool light generator with Halogen lamps of 15V / 150W, provides the light intensity of over 80.000 lux

Optional

  • Green light
  • Tiltable Binocular Straight or 0 to 60th

Estates:

  • Floor caster
  • Fixed on floor
  • Wall or ceiling

Adaptable Accessories:

  • Video System
  • Digital Photo
  • Bi-Observer

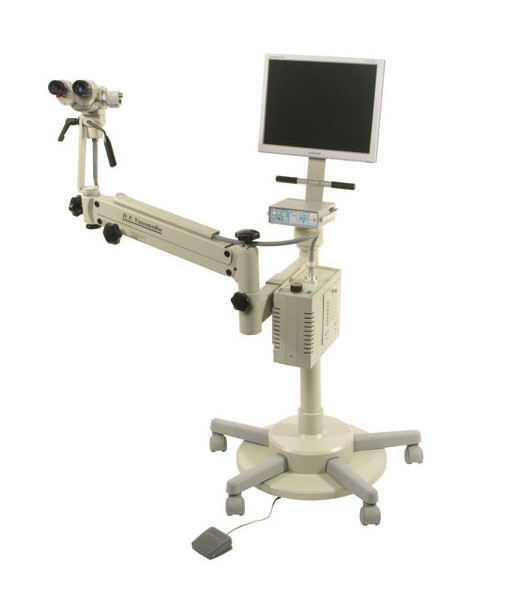

COLPOSCOPE - LINE CP M 1255

The most complete DFV colposcope. With a complete video system assembled the optical head, enabling the patient to follow the exam by an LCD monitor. With this system, images are captured on a memory card that can be read on a computer outside the exam room, with no need of standing next to the colposcope. Image on the screen (TV, computer and monitor) is equal to the image observed by the professional.

This colposcope features:

  • High resolution video – 480 lines of horizontal resolution
  • Enables simultaneous observation – binoculars and LCD 15″ monitor
  • Possibility of recording, image capturing and printing
  • Easy to handle and cost-wise

Optical Head Specifications

  • Stereoscopic head with 5 magnifications (3x, 4x, 7x, 11x and 17x)
  • Objective focus 300mm (other objective focus is optional)
  • Binocular straight or inclinable (optional)
  • Wide angle 12.5x adjustable eyepieces with lock
  • Objective lens microfocusing
  • Green filter
  • Handle
  • Beam splitter
  • Video camera adapter incorporated in the optical head

Stand

  • Pantographic arm
  • Cold light generator 15V/150W (with 01 lamp), conducted by fiber optics
  • Portable floor stand with five casters

COLPOSCOPE - LINE CP M 2522

Colposcope with incorporated video is the last word in Colposcopy. The video camera is assembled directly on body of the equipment, facilitating the colposcopy work. Allowing increased economic parcticity, this colposcope features:

  • Image on the screen (TV, computer and monitor – sold separatelly) is equal to the image observed by colposcopist.
  • High Resolution Video – 480 TV lines of horizontal resolution
  • Possibility of simultaneous observation - binoculars and video
  • Video recording, image capturing and printing system

Optical Head Specifications

  • Stereoscopic head with 5 maginifications (3x, 4x, 7x, 11x and 17x)
  • Objective focus – 300mm
  • Short straight binocular – focus = 160mm
  • Wide angle 12.5x adjustable eyepieces lock
  • Objective lens microfocusing
  • Green filter
  • Handle
  • Beam splitter
  • Video camera adapter incorporated in the optical head
  • DFV Camera 36 x 36 x 37mm, 1/3″ – NTSC 768 (H) x 494 (V)

Stand

  • Portable floor stand with five casters
  • Cold light generator 15V/150W (with 01 lamp), conducted by fiber optics
  • Minimum height: 950mm
  • Maximum Height: 1120 mm

MICROSCOPE - LINE MC M2222

Pioneering associated with superb quality

Clinical microscopy is recommended for several areas. Among the main benefits there is the significant end results quality enhancement, due to the better visualization of the process.

  • Superior illumination when compared with the regular reflector. Features adjustable light intensity
  • Superior ergonomics
  • Illumination + magnification
  • Greater precision and refinement of the procedures
  • Enables correction of small imperfections previously undetectable.

Digital photo/video – enables enhanced communication with the patient; data storage and production of teaching material.

Optical head specification

  • Optical head with 45 o inclined binoculars or 0o to 60o inclinable binoculars
  • 42mm diameter objective lens with 200mm focal distance (other focal distances available upon request)
  • Wide angle 12,5X eyepieces with diopter adjustment and lock
  • Orange filter allowing control over resin polymerization
  • Two halogen lamps with dimmer
  • Five magnification positions: 3x, 5x, 8x, 13x and 20x
  • Manual focusing in 5x model and motorized microfocusing (pedal operated) on MF model
  • Optional xenon light, offering higher light output.

Stands

  • Floor stand with casters
  • Fixed stand (smaller foot print)
  • Wall/ceiling mount, ideal for small spaces

MICROSCOPE - LINE MC 3101

The evolution in optics accompanying the evolution of surgery – where the magnification and illumination are fundamental requirements. This surgery microscope features:

  • XY Positioning – the light beam exactly where it is needed, an excellent feature for surgery
  • Zoom system with motorized or manual adjustment – the ideal magnification for every procedure
  • Binoculars tilting 0º to 60º – comfort and versatility
  • Apochromatic objective lenses - Ø 55mm – more light with better resolution
  • Motorized microfocus – precise and practical.
  • Perfect optical head positioning by the sterilizable handle and the micrometric adjustment of the head’s inclination.
  • Coaxial illumination with over 85.000 lux. Easy access dimmer and on/off switch on pedal.
  • Pantographic arm with adjustable spring tension for perfect balance, 12V outlet for video cameras and blocking switch for the motorized zoom.
  • Easy and fast change of lamps by a single button.
  • Digital documentation (photo and video) with  image capturing for VCR and computer
  • Second observer position with the comfort offered by the inclinable binocular

Technical information

  • Inclinable binocular 0o to 60o – F:155mm
  • Apochromatic objective lens – 55mm diameter – F:200mm
  • Optional objectives:
  • Apochromatic objective lens 55mm diameter – F:200mm 0o.
    -F: 175mm, 250mm, 300mm, 400mm
    -12,5x widefield eyepiece with dioptry adjustment and lock
  • Interpupillary distance adjustment from 42 to 75mm.
  • Observation field from 9mm to 54mm.
  • Illuminated field with 55mm diameter
  • Continuous zoom magnification from 4x to 23x.
  • Foot pedal control microfocalization
  • Green filter

Cool generator

  • Automatic tension selection from 100V to 240V, 60Hz.
  • Two halogen lamps 15V-150W, with easy access dimmer positioned on the pantographic arm.

Stand

  • Star shaped stand (720mm diameter) with five casters and lock.
  • Tubular column with two handles to move the microscope.
  • Pantographic arm with adjustable spring tension for perfect balance.
  • Optional: Stand for wall or ceiling mount.

D.F. Vasconcellos S.A.

  • +55 24 2453 5416, +55 24 2453 5354, +55 24 2453 5364
