Tronrud Engineering, was founded by Ola Tronrud in 1977 and is a supplier of specialist machinery to the industry both at home and abroad. The company assists its customers with the development of profitable industrial products and technical solutions.

Design of special solutions for the industry is core business at Tronrud Engineering.

The company also offers services within design, machining, welding and assembly of parts.





Tronrud Engineering AS - Pictures

Contact info #1

Torgeir Stadheim
+47 32 16 18 35
Business Development - Sales
+47 32 15 75 68
Flyplassveien 22, N-3514 Honefoss, Norway

RESEARCH AND DEVELOPMENT

The R&D department supports internal projects and external customers focusing on:

  • Renewable energy
  • Robot technique
  • Wafer tecnology
  • FEM analysis
  • Thermology
  • Acoustics
  • Flow analysis
  • Structure
  • Algorithm development

Tronrud’s R&D department has expertise within mathematical modelling and algorithm development. Advanced FEM (Finite Element Method) tools are utilized, in order to form a theoretical support for the more practical parts of the company's projects, as well as to solve pure R&D tasks for its customers.

The company’s experience is that building up an adequate theoretical foundation before getting too deep into a new project can be of vital importance, in order to solve a problem within the budget and the time frame, as well as to achieve an optimal technical solution.

DESIGN

The process of developing a machine, often starts with an idea before it ends on the drawing board. Tronrud Engineering is putting the ideas into practice.

All design is carried out using state-of-the-art CAD-systems. Tronrud Engineering has worked with 3D-CAD since the early 1990s and today the company uses Siemens PLM Software (NX and Teamcenter). The company also uses CAD to design electrical systems when these are a part of its projects.



PRODUCTION OF PARTS

An optimal combination of CNC controlled machinery and highly skilled personnel are the key strength of this department. The machinery equipment is on the cutting edge of today’s technology. Directly transfer from CAD to CAM ensures a high quality and short lead time of complex geometry.

The welding department uses common welding techniques like TIG, MIG and MAG, with certified welders. This department also has a workshop for sheet metal production.

The assembly department, with its highly skilled workers, ensures that the building and testing of machines are at a world-class level.

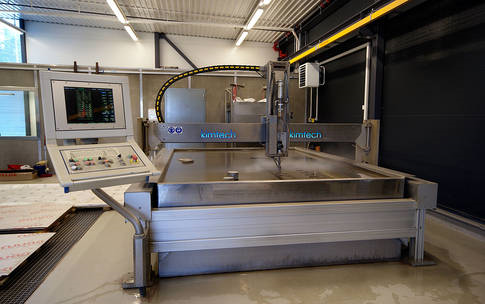

WATER JET CUTTING

Water jet cutting is a trimming method for plate materials where one cut with water under extremely high pressure mixed with an abrasive material. With a water jet it is possible to cut most materials. Cutting carried out by a water jet makes very fine surfaces and requires little after treatment.

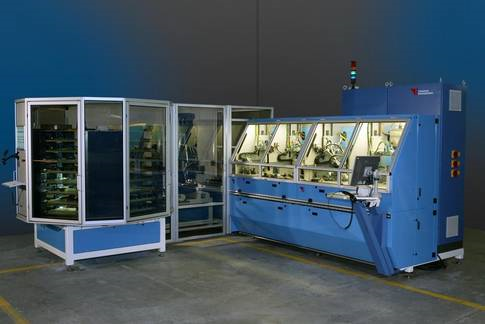

ASSEMBLY AUTOMAT

Assembly automat for car industry

  • High precision assembly of brake hose fittings for the car industry.
  • Production year: 1994
  • Cycle time:  2,7 sec

Assembly automat for maritime sonar technology

  • Robot assembling of oscillator elements, which function is to oscillate in order to generate sound waves. Every element both sends and receives sound.
  • Product range: 4 oscillator types.  The product requires an extreme accurate assembly process.
  • Assembly of 11 components: including processes as gluing and nut tightening.
  • Production year: 2002
  • Cycle time: 3 min per oscillator

Assembly automat for HVAC industry

  • Final assembly of water heaters
  • Assembly of bottom part and heater.
  • Torque tightening of safety valve. Label dispensing.
  • Elevating platform in order to handle the various heater dimensions: 80, 120, 200 and 300 litres.
  • Year :  2002
  • Cycle:   40 seconds /unit

ASSEMBLY LINE WITH QUALITY CONTROL

Ball welding on vanes for jet engines.

The machine mounts, welds and controls components that are automatically mounted on the vanes for the jet engine.

Industry:  Aviation

Production year: 2007

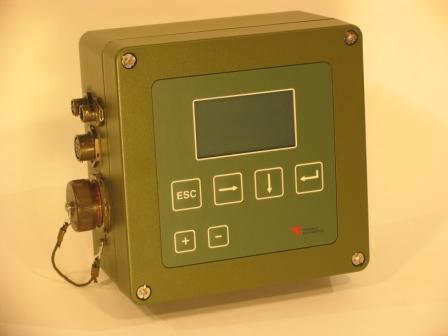

RECOIL PROCESS DATA LOGGER

A device for measuring the complete recoil process of a 155 mm artillery gun.

The recoil process data is stored and lends itself well to analyzing early warnings and accidents alike.

Industry: Defence

Production year:  2005

AUTOMATIC BORE CLEANER

Tronrud Engineering has developed an Automatic Bore Cleaner. The system executes a selectable cleaning programme while maintenance crew prepares the next gun.

The designer’s drawing illustrates the “snap on” muzzle power unit, featuring the brush unit as a separate part.

Industry: Defence

Production year: 2003

MACHINING

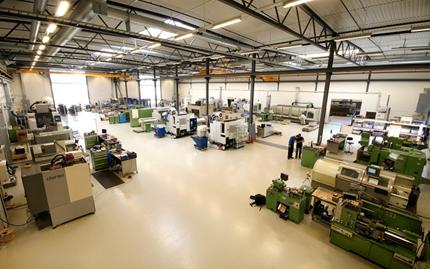

Tronrud Engineering has one of the most modern machining centre in Norway.

Its machining department has highly skilled and experienced employees operating a variety of milling and turning machines. We are able to handle all common material types.

Drawings are transferred directly from CAD systems to the machines, ensuring high accuracy and short programming time.

The company's  machine park consists of 19 CNC controlled machines – where the newest one is a Mori Seiki NMV5000 DCG, a 5 axed milling machine.

  • Chiron FZ08
  • Deckel FP3NC
  • Deckel FP42NC
  • Deckel Maho DMU50
  • Deckel Maho DMU50T
  • Gildemeister - NEF 520
  • Hitachi Seiki HG400 III
  • Hitachi Seiki VS50
  • HAAS EC300
  • HAAS VF11
  • HAAS VF2 (2 pcs)
  • Kimtech (Water jet cutting)
  • Mori Seiki NL2000SY (2 pcs)
  • Mori Seiki NL2500MC
  • Mori Seiki NMV 5000 DCG
  • Schaublin 102
  • Unisign Univers 5

Tronrud Engineering AS

  • Flyplassveien 22, N 3514, Honefoss, Norway
  • +47 32 16 18 20
  • +47 32 15 75 68
