COTECMAR, is a Science and Technology Corporation oriented towards the design, construction, maintenance and repair of naval ships and artifacts. COTECMAR, based on the university-company relationship, gives priority to research & development, the application of new technology and the best business practices in order to contribute to the technological, social and economical development of the country. COTECMAR offers advanced technical solutions for the naval, maritime and fluvial industries.

VISION

To be a leading organization with international projection in investigation and innovation technology in the field of naval, maritime and fluvial industries.

SOCIAL RESPONSIBILITY

In COTECMAR, the commitment to individuals, the community and the state is respected in the same way as the commitment acquired through environmental processes that make sure that sustainable and harmonic development is achieved.

QUALITY MANAGEMENT

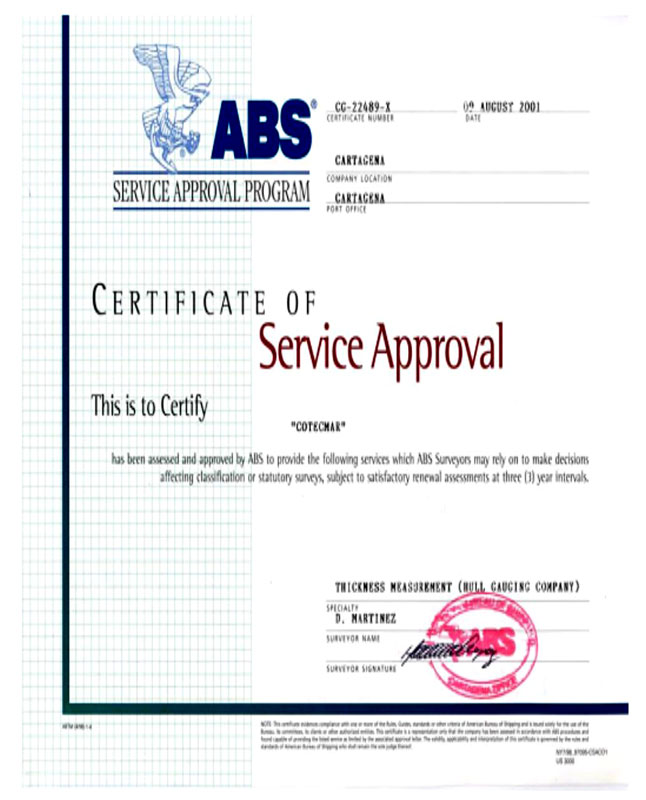

The Integrated Management Systems’ office implements and maintains the COTECMAR Quality Management System which has been established under the guidance of the ISO 9001:2000 standard and is focused on clients' satisfaction through the continuous improvement of processes.

COTECMAR, is committed to sustainable development, for which it has established and implemented Environmental Management Plans for all shipyards and production sites, in compliance with environmental legislation in effect. COTECMAR is also certificated by the local authority in the implementation of the International Ship and Port Safety Code (ISPS).

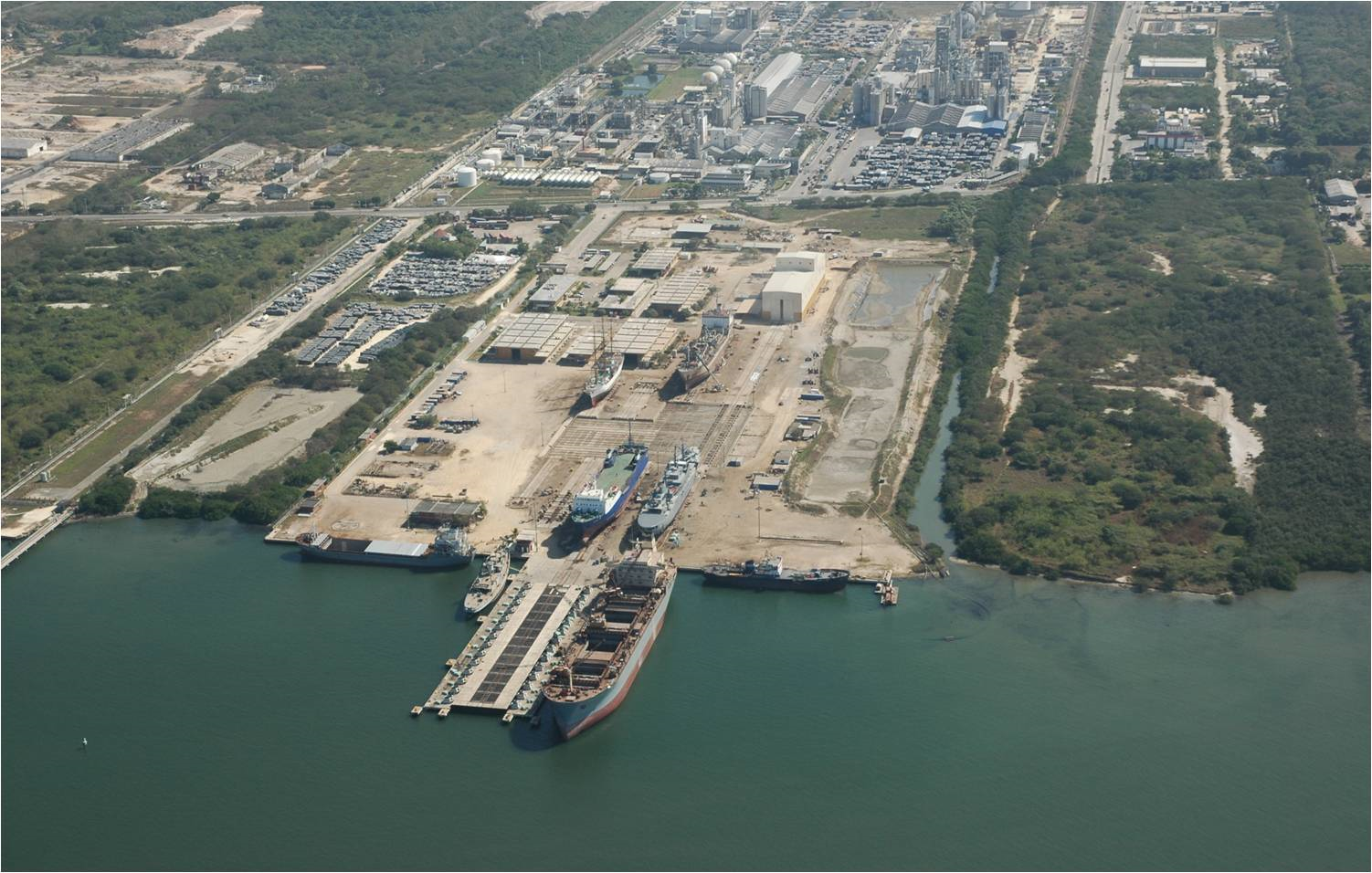

Mamonal Shipyard: This shipyard has a strategic position, located in the Bay of Cartagena, Colombia in the Caribbean Sea, 180 miles from the Panama Canal. The shipyard occupies an area of 17 hectares. The Mamonal Shipyard is equipped with a synchro-lift system, with seven dry docking positions and its corresponding support workshops in the Mechanic, Welding, Sandblasting and Coating areas.

Synchro-lift System

  • Platform length 117 metres,
  • Platform width 22 metres,
  • Lifting capacity up to 3,600 Tons,
  • Lifting/mt capacity up to 43.5 Tons,
  • Lifting/Beam capacity up to 452 Tons,
  • Maximum draft 5.8 metres,
  • Keel rollers frame capacity up to 68 Tons,
  • Platform length 9.15 metres,
  • Platform speed 23 Cm/Min.

Docks & Dry Dock Positions

  • North dock 125.35 metres,
  • South dock 117 metres,
  • North synchro 152.92 metres,
  • South synchro 152,92 metres,
  • PV1 120 metres,
  • PV2 114.8 metres,
  • PV3 108.8 metres,
  • PV4 90 metres,
  • PV5 67 metres,
  • PV666 metres,
  • PV766 metres,
  • Transfer frame 88.9 metres,
  • Transfer axis 156.23 metres.

Mamonal Shipyard Services:

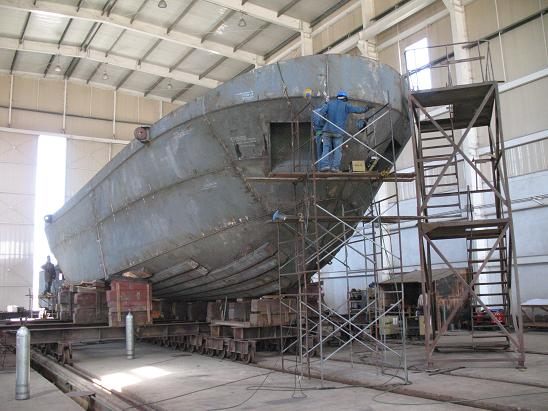

  • Design and Construction of Naval Artifacts and Vessels,
  • Consultation in the Design and Construction of Naval Artifacts and Vessels,
  • Design and Construction of Glass Reinforced Polyester (G.R.P.) Boats,
  • Repair and Maintenance of Naval Artifacts and Vessels,
  • Consultation and Assessment.

Bocagrande Shipyard: This Shipyard has a strategic position, located in the Bay of Cartagena, Colombia in the Caribbean Sea, 180 miles from the Panama Canal. The Bocagrande shipyard has a SLIP type lifting system capable of receiving vessels up to 1200-tons, an 8 roller frame ramp for longitudinal lifting of 300 tons, with 250 metres of non-continuous lateral dock for a-float repairs, with ground and movable equipment services to handle loads of up to 100-tons.

  • Length 66.5 metres,
  • Breadth 18.2 metres,
  • Draft 14 feet.

Bocagrande Shipyard Services:

  • Repair and Maintenance of Vessels and Naval Artifacts,
  • Consultation and Assessment,
  • DETROIT DIESEL Engines Workshop,
  • SIEMENS Electricity Workshop.
Cotecmar - PicturesCotecmar - Pictures 2Cotecmar - Pictures 3Cotecmar - Pictures 4Cotecmar - Pictures 5Cotecmar - Pictures 6Cotecmar - Pictures 7

Contact info #1

+57 5 653 5035
SALES
COTECMAR-Cartagena-Colombia

Contact info #2

+57 5 653 6035
MAMONAL SHIPYARD

Contact info #3

+57 5 665 20 59
BOCAGRANDE SHIPYARD

DESIGN & CONSTRUCTION OF VESSELS & NAVAL ARTEFACTS

  • Consulting in design and construction of vessels and Naval Artifacts.
  • Design and construction of Glass Reinforced Polyester (G.R.P.) boats.

REPAIR & MAINTENANCE OF VESSELS & NAVAL ARTEFACTS

• Vessels lifting and launching operations.
• Painting and coating services.
• Ultrasound thickness measurement.
• Steel removal and replacement.
• Piping removal and installation.
• Maintenance and repair of fixed and variable pitch propulsion systems.
• Foot valves maintenance and repair.
• Machining of parts.
• Pneumatic and hydrostatic testing.
• Cathode protection studies.
• Propeller static and dynamic balancing.
• Docking services.
• Non destructive analysis.

CONSULTING & ADVISORY SERVICES

Consultation in Naval Engineering and Architecture.
  • Consultation in welding processes.
  • Dock and Sea Trials Protocols elaboration.
  • Dock and Sea Trials conduction.
  • Preparation of proposals for vessel modifications and alterations.
  • Assessment and consultation for quality assurance in all specialized processes of the Naval, Maritime and Riverine Industry.

METALMECHANICS & GENERAL WELDING WORKS

• Fabrication of metallic structures, tanks and industrial plants.
• Welding for specialized processes and TIG/MIG/SMAW maintenance.

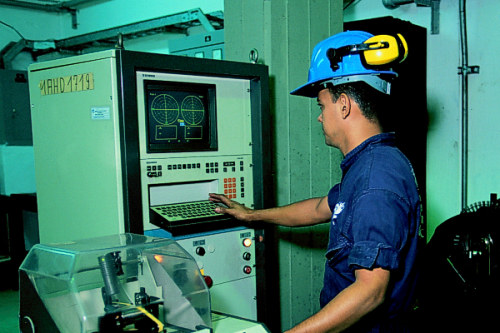

• Oxyacetylene and plasma cutting services using CNC machining.
• Sheets rolling up to ¾” x 6 meters.
• Lathing, chiseling, planering and milling services.

ENGINE WORKSHOP

Maintenance and Repair of:

  • Diesel MTU, Detroit and Caterpillar up to 5.000 HP Engines.
  • Twin discs, MTU and Allison reducers (Reduction Goars).
  • Water, oil and fuel pumps, injectors, turbo blowers, cylinder heads, admission and exhaust manifolds, coolers and expansion tanks.
  • Dynamometers for 100 HP to 2.000 HP and 4000 RPM motors.
  • Dynamic and static balance up to 100 Kg.
  • Engine preventive diagnosis and operation parameters measurement.

ELECTRICITY WORKSHOP

Maintenance and Repair of:

  • Three-phase and single-phase electric motors and generators.
  • Rotary converters and low voltage distribution transformers.

Design, assembly, installation and maintenance of:

  • Monitoring, control and automation systems.
  • Air conditioning and refrigeration systems for marine, industrial and commercial services.
  • Protection systems for electric equipment and machinery.
  • Fire detection systems.
  • Low and medium voltage lines.

HARBOR TUGBOAT

Performance

Speed 9 knots
Bollard Pull 7.0 Ton. Met.

Dimentions

Length 15.30 m
Breadth 4.70 m
Depth 2.10 m

Capacity

Diesel Fuel 1890 Gal.
Potable Water 138 Gal.

G.R.P SMALL BOATS

Performance

Speed 40 Knots
Autonomy 500 MN

Dimensions

Length Overall 12.95 m
Breadth 2.96 m
Depth 1.66 m

Capacities

Diesel Fuel 600 Gal.
Potable Water 50 Gal.

Propulsion

Main Engines 3 x 370 BHP (Diesel)
Transmissions 03 Surface Transmissions.


RIVERINE SUPPLY VESSEL

A movable platform with the technical capacity to support river operations for the Colombian Navy.

Characteristics

Speed 18 Km/hr
Autonomy 15 Days
Range 3240 Km

Dimensions

Length Overall 38.45 m
Breadth 9.50 m
Depth 2.80 m
Draft 0.95 m
Displacement 260 Ton

Tanks Capacity

Gasoline (with Explosafe®) 5700 Gals
Diesel Combustible 10500 Gals
Potable Water 5490 Gal

FLOATING PUMP PLATFORM

This station has the necessary equipment to ensure the optimal operation of the cooling, fire fighting and aqueduct systems through CAD, CAE and CAM software.

Performance

Pump Capacity 19000 GPM

Dimensions

Length Overall 18.00 m
Breadth of Beam 9.50 m
Depth of Hold 1.80 m
Draft 1.30 m

Auxiliary Equipment

Pumps 06 Submersible vertical pumps, two for each suction channel, which are freely connected to the environment.
Valves Motor driven suction lines valves.
Monitoring By means of a PLC, which gives the floating pump platform characteristics, without crew.

BOUY TENDER SHIP

Buoy tender ship whose objective is the positioning and maintenance of buoys.

Performance

Speed 10 Nudos
Autonomy 7 Days

Dimensions

Length Overall 22.07 m
Breadth 8.16 m
Depth of Hold 3.50 m
Draft (Average) 2.06 m
Displacement 175.5 Ton. Met.

SCIENCE & TECHNOLOGY

COTECMAR generates knowledge with the permanent exercise of technological activities oriented towards overcoming marketing expectations. Thus, through the search of better industrial practices in the services it offers, it obtains better technology in significant areas. The projects being implemented shall be developed aiming to introduce to the Corporation the key technologies for the shipyard industry, based on transfer processes and technological development.

The Projects currently being led by the Science and Technology Department are the following:

Naval Construction Materials Objective: To understand the application of new materials in the design and construction of vessels.

Quality Management System Objective: To standardize key processes in the design, construction and repair of vessels.

Information Integrated System Objective: To control key processes of the shipyard industry, keeping useful information for industrial and technological development.

Corrosion Integral Handling Objective: To control marine corrosion phenomena and their impact on the performance of vessels.

INNOVATION SYSTEM FOR THE SHIPYARD INDUSTRY

Since the beginning, COTECMAR aimed to be the leader in science and technology in the regional shipyard industry. Therefore, it became the space of convergence for all entities that possess important resources.

COTECMAR’s main strength is its technological character linked to its industrial activities. From the identification of technological needs it initiates the evolution of its research and development processes.

The Corporation is committed to fulfilling market expectations, proposing the best practices in its production activities. In this same sense, the Corporation has initiated the execution of technological projects whose purpose is to incorporate key technologies. This will allow it to enhance its research programs in order to develop innovation processes that consolidate its technological achievements in legitimate competitive advantages.

RESEARCH & DEVELOPMENT PROGRAMS

Information Integrated Systems for the Shipyard Industry – SII Projects:

  • Definition and analysis of the requirements of an information integrated system for the shipyard industry.
  • Scientific and technological cooperation covenants.
  • National center of productivity.
  • Marine corrosion control.

MIC Projects:

  • Assessment of the effectiveness of the anti-scale forming of coatings applied in ASTM-a-131 steel, Grade A, of vessels in the Bays of Cartagena and Malaga.
  • Optimization of the cathode protection system in minor vessels in the Bay of Cartagena.
  • Characterization of the problems generated by bio-corrosion in the upper works of vessels in the Bay of Cartagena, and protection alternatives with the use of anti-scale-forming paints.
  • Assessment, design and construction of corrosion control systems.
  • Technological and scientific cooperation covenants.
  • Universidad de Antioquia corrosion and protection group.

Naval Construction Materials – MCN Projects:

  • Assessment in the application of new technologies in the cutting of specific materials for the shipyard industry.
  • Assessment of new polymeric materials to build bushings for propulsion systems in vessels.
  • Assessment of the welding ability of naval materials in repair processes for the national shipyard industry.
  • Technological appropriation and validation of materials consisting of polymeric matrix reinforced with fiberglass for vessel construction.
  • Appropriation of finite elements methods to solve structural calculation and material problems in the naval design processes.
  • Scientific and technological cooperation covenants.
  • “Centro Internacional de Física” Research Centre.
  • “Instituto de Ciencia e Ingeniería de Materiales” Research Centre.
  • “Universidad Nacional de Colombia” Research Centre.
