NT-620 is a system developed for transportation of patients on standard stretchers, providing fast and flexible mounting in military or civilian vessels or vehicles. The system reduces unpleasant and life threatening vibrations and jolts to a safe and comfortable level.

The combination of the damping units interconnected with web harness gives the system a unique spherical damping capacity. NT-620 does also have shock absorbing qualities, reducing shock waves down to an acceptable level. It has been developed to meet strict requirements regarding fast assembling and disassembling, reliable functionality, strength, flexibility and high degree of integration.

Role equipment, within 1 to 2 minutes the transport unit has been converted from a carrier of personnel or goods, into a CASEVAC/MEDEVAC unit. The Stretcher Rack System can be delivered in three versions:

• NT-620/1 for one stretcher
• NT-620/2 for two stretchers
• NT-620/3 for three stretchers Distance between stretchers according to customer request.

Vibration and shock absorbing platform, facilitating field surgery onboard vessels and vehicles. Specially designed for high-speed boats, but can easily be redesigned for other vessels or vehicles.

Role equipment, designed for rapid assembly and disassembly. The system is based on the principles of the patented NT-620 and gives a spherical damping of the platform.

The system is totally integrated, and does not need any additional instalment of bolted brackets or fastening holes. In Sea King MK43 configuration - the system can be assembled and disassembled in less then 2 minutes with pre installed fastening points.

The fastening points are preinstalled to the existing troop seat structure.

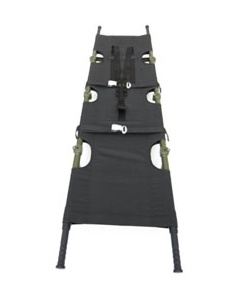

A four folded stretcher designed in accordance with STANAG 2040 and STANAG 3204. Low weight and foldable with telescopic handles are features that are appreciated both during use and storage. The stretcher has an integrated 5+2 point harness for safe evacuation by land, sea or air. Harness can be repositioned to enable patient restraint when using the NODIN adjustable back rest (ABR). The ABR is adjustable for 0, 30 and 45 degrees.

To enable immediate evacuation of injured persons NODIN has developed a CASEVAC kit which can be used on board most vehicles and vessels. The NODIN CASEVAC kit consists of four folded stretcher and a four sling stretcher rack with two Vibration and Shock Damped Stretcher Brackets. The Torso/Head end of the patient is placed at the end where the Vibration and Shock Damped Stretcher Brackets are located. The Casevac kit is light and with low volume approx 40 kits can be stored within one cubic meter.

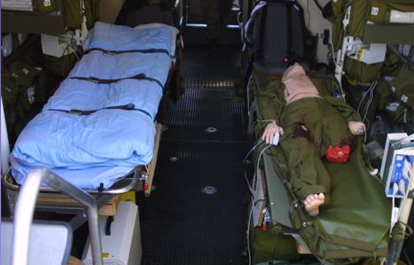

Tactical Intra Hospital Transport of critical Patients. This Patient Transport System has been designed to be suspended in standard aircraft stretcher support systems. It is designed to meet the requirements of STANAG 2040 and STANAG 3204.

Unit Weight Empty: 18 Kg Additional payload of electro medical equipment and oxygen is 60 kg. Optional with Extendable legs.

Role Equipment for Strategic Aerial MEDEVAC.

• Stretcher Support Rack
• Mass Evacuation Capacity
• Two stretcher patients’ pr rack
• Light weight, small storage volume
• Rapid installment in A/C, without tooling
• Up to 22 stretcher patients’ pr flight, Boeing 737-700
• Can be palletized for use in military cargo aircraft
• Electro Medical Rack
• Design to meet Customer requirements and choice of Electro Medical Equipment
• Rapid installment in A/C, without tooling

Also prepared for use on board C-130J
