INDUMIL-INDUSTRIA MILITAR, has over 50 years of experience in the production of weapons, ammunition, explosives and metallurgical products obtained from casting and investment casting.

Additionaly offers machining services, heat treatment, tool manufacturing, surface treatment, laboratory tests and product development.

INDUMIL has the following functions:

  • Cooperate with the Ministry of Defense in the policymaking process and the preparation of plans that aim at the development of respective sector programs.
  • Produce, import and supply weapons, ammunitions, explosives, equipment and complementary elements to the Military Forces, the National Police and other state organizations.
  • Manufacture, import and market sports weapons, personal defense weapons, ammunition, explosives, and the raw materials necessary for their manufacturing.
  • Produce, import and market raw materials for industrial use and for the elaboration of explosives.
  • Offer consultancy and other services related to the activities in which it is engaged.
  • Complement the country's internal and exporting needs by exploiting industrial branches that allow the use of machinery and equipment from other factories.
  • Cooperate with decentralized state entities and with other organizations that perform similar functions that are specified by the Law in Article 6, Decree 1684, dated June 24 1985.

The company’s mission is the first priority when defining its strategic objectives and this implies taking into account the necessities and requirements of the clients and other parts involved such as the Organization, the changing environments that are linked to technological and scientific advances, new conceptions regarding national security and defense, and the country’s situation. The result of the development and the implementation of the strategic plan mentioned above is a set of objectives which will be described ahead.

Indumil’s Strategic Objectives:

  • Increase the range of products in the company’s portfolio while updating the existing one,
  • Search for and increase participation in new markets,
  • Improve integral management.
INDUMIL - Industria Militar - PicturesINDUMIL - Industria Militar - Pictures 2

Contact info #1

Carlos Velasquez
+57 1 220 7800
Deputy Commercial Manager
+57 1 222 4889
Calle 44 N? 54-11, Bogota, Colombia

GALIL ASSAULT RIFLE AR MODEL GAUGE 5,56 mm

Multiple purpose individual weapon that works as the main weapon for the military forces and the Police. It is a light weight, air cooled rifle, with a reverse mechanism activated by gas pressure, fed by a magazine and can be fired from the shoulder or the hip. It works in automatic and semi-automatic modes, through a fire selection lever.

Product informational files

IMC-40 GRENADE LAUNCHER

The IMC-40 single grenade launcher is an accessory specially designed to be fitted to individual weapons such as sub machine guns, and assault rifles, specifically in the 5,56 Galil assault rifle models SAR and AR, creating a very versatile weapon capable of firing 5,56 mm rounds and all 40 mm low velocity rounds, either high explosive or special purpose rounds.

MULTIPLE 40 mm GRENADE LAUNCHER

TECHNICAL DATA

Operation System

  • Semi-automatic gas operated and double trigger action.

Feeding System

  • Rotating drum revolver type, with six chambers.

Shooting System

  • Unique OEG optical sight for shooting with both eyes opened, adjustable in 25 m increments, from 50 m until 375 m.

Ammunition Used

  • Operates with ammunition HE, HE-AP (M848A4), HEDP (M433), AP TP (M781), TP (M9602A1), riot control, illuminating and smoky.

WEAPONS AND AMMUNITION

Self-defense weapon with both double and simple action shooting mechanism and drum for 6 rounds.

60 L.A. MORTAR

Easy armed devise that by its design and weight can be transported without further inconvenience. It is used to beat areas in a quick and effective way, where in most cases there is a lack of the target direct visibility. It is used for soldier training as well as combat.

Due to the implementation of tritium in the markmanship system, now is possible to shoot in low luminosity conditions, pointing the mortar to the required distance.

5,56 X 45 mm ROUNDS TYPE SS109 FOR RIFLE & MACHINE

Technical Specifications

  • Overall length: 57 mm,
  • Round weight: 12 g,
  • Projectile weight: 4 g,
  • Projectile nucleus: Steel tip and lead core,
  • Primer: Boxer type, non-corrosive,
  • Gunpowder: Spherical, smokeless double based,
  • Maximum pressure: 3.867 kgf/cm2 Velocity: 915 ± 12 m/s

LINKED AMMUNITION 5,56 X 45 mm FOR RIFLE & MACHINE

Components 4 ball rounds: SS 109 (M 855),

  • 1 tracer round: M 856 Link: M 27,
  • Link belt: 4 ball rounds x 1 tracer round or according to customer demand,
  • Packaging: 2 belts of 100 units in a plastic box.

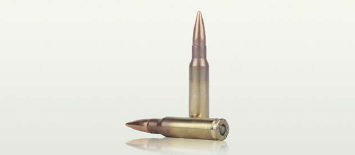

7,62 X 51 mm ROUNDS TYPE M80 FOR RIFLE & MACHINE

Technical Specifications

  • Overall length: 71 mm,
  • Round weight: 24 g,
  • Projectile weight 9,5 g,
  • Projectile nucleus: Lead,
  • Primer: Boxer type, non-corrosive,
  • Gunpowder: Spherical, smokeless double based,
  • Maximum pressure: 3.515 kgf/cm2 Velocity 838 ± 10 m/s,
  • Precision: Average radius should be less than 127 mm on a target at 548 m,
  • Uses: 7,62 x 51 mm weapons (recommended for weapons with 7 inch rifling),
  • Identification: Stamped on,
  • The base: IM - lot number - year of manufacture (IM-xx-yy),
  • Packaging: 20 rounds in cardboard boxes protected with plastic packaging and then packed in wooden boxes of 1.000 units,
  • Lot size: 201.600 or 25.200 units.

LINKED AMMUNITION 7,62 X 51 mm FOR RIFLE & MACHINE

Components: 4 ball rounds: M 80 1 tracer round: M 62 Link: M 13 Link belt: 4 ball rounds x 1 tracer round or according to customer demand Packaging: 2 belts of 100 units or according to customer demand.

5,56 X 45 mm ROUNDS FOR BLANK

Technical Specifications

  • Equivalent: M 200 (blank star),
  • Weight: 7,4 g,
  • Length: 48,3 mm,
  • Primer: Boxer type non-corrosive and non-mercurous,
  • Brass laminate sheet material: Brass,
  • Gunpowder: Double base.

Note: it should be used with the blank device that corresponds with the weapon in which the ammunition will be used.

PERSONAL DEFENCE AMMUNITION

Revolver ammunition in gauge 38” SPL and 32” L, pistol ammunitions 7,65 mm and 9 mm NATO and submachine gun ammunition 9 mm NATO.

IM-M26 HAND GRENADE

Revolver ammunition in gauge 38” SPL and 32” L, pistol ammunitions 7,65 mm and 9 mm NATO and submachine gun ammunition 9 mm NATO.

IM-M26 HAND GRENADE

Technical Specifications

  • Total weight: 440 g,
  • Fuse: Mechanical action,
  • Fuse type: Pyrotechnical delay,
  • Delay time: 4,5 seconds,
  • Body material: Steel sheet,
  • Fragmentation: 900 - 1.200 fragments,
  • Safety radius: 20 m minimum,
  • Mortal action radius: 11 m minimum from the explosion centre.

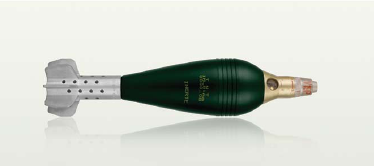

60 mm H.E. GRENADE FOR MORTAR

Technical Specifications

  • Total height: 284 mm,
  • Total weight: 1.345 g,
  • Fuse: V9 reference,
  • Fuse type: Mechanical, pyrotechnical, armed by inertia with non-aligned fire train,
  • Body material: Casting,
  • Fragmentation: 1.400 minimum fragments,
  • Stabilizing tail: Extruded aluminium,
  • Mortal action radius: From the explosion centre up to 15 m minimum.

81 mm H.E. GRENADE FOR MORTAR

Technical Specifications

  • Total height: 378 mm,
  • Total weight: 3.300 g,
  • Fuse: V19P reference,
  • Fuse type: Mechanical, pyrotechnical, with the possibility of instantaneous action or with 0,05 seconds delay,
  • Body material: Casting,
  • Fragmentation: 3.200 minimum fragments,
  • Stabilizing tail: Extruded aluminium,
  • Mortal action radius: From the explosion centre up to 18 m minimum.

120 mm H.E. GRENADE FOR MORTAR

Technical Specifications

  • Total height: 646 mm,
  • Total weight: 13.600 g,
  • Fuse: V19P reference.

Fuse type:

  • Mechanical, pyrotechnical, with the possibility of instantaneous action or with 0,05 seconds delay,
  • Armed by inertia with non-aligned train fire,
  • Body material: Casting,
  • Fragmentation: 4.000 minimum fragments.

Stabilizing tail:

  • Fin: extruded aluminium,
  • Booster: high resistance steel,
  • Mortal action radius: From the centre of the explosion until 25 m minimum.

60 mm L.A. GRENADE FOR MORTAR

The 60 mm L.A. mortar grenade is used to neutralize live forces and equipment inside or outside deck, guard posts, command posts and to open gaps in minefields. It counts with a high aerodynamic performance profile.

Technical Specifications

  • Gauge: 60 mm,
  • Total height: 420 mm,
  • Total weight: 2.700 g,
  • Fuse: V9 reference,
  • Fuse type: Mechanical, pyrotechnical, armed by inertia with non-aligned fire train,
  • Explosive weight: 330 g,
  • Maximum range: 3.600 m with six loads and 940 mm length booster,
  • Minimum range: 300 m,
  • Fragmentation: 2.000 minimum fragments.

GRENADE FOR LAUNCHER MGL 40 mm

Technical Specifications

  • Total height: 103 mm,
  • Total weight: 237 g,
  • Fuse: Mechanical,
  • Type: HE - AP,
  • Armed fuse: By inertia and centrifugal force, with non-aligned rail,
  • Body material: Aluminium,
  • Fragmentation type: Previously fragmented cup with over 400 fragments,
  • Safety distance: 8 m minimum,
  • Mortal action radius: 5 m.

IM3 PRACTICE HAND GRENADE

Technical Specifications

  • Total height: 106 mm,
  • Total weight: 425 g,
  • Fuse type: Mechanical with pyrotechnical delay,
  • Delay time: 4,5 s ± 0,5 s,
  • Signalling load: Smoky,
  • Body material: Injected aluminium,
  • Painting: Blue for the body and white for the identification marks.

EARLY ALERT SYSTEM

The early alert and defence systems are specially developed for the protection of fixed bases and mobile patrols, because of their maintenance of a defensive reaction when facing a critical situation. Electronic alert system, constituted by 15 sensor units and one control unit fed by a solar cell.

Uses Used for the penetration of fixed bases as an early alert system. It allows the detection of enemy’s penetration through critical access pathways through a luminous and sonorous signal, minimizing a surprise intrusion and facilitating a timely reaction.

ANTI-EXPLOSIVE DEVICES EQUIPMENT

The equipment for explosive device deactivation has the aim to counteract the damage caused by the use of explosives by the terrorists. It is based on the principle of the rope hook system which consists in tubular sections that are joint in a mechanical way, easily armed whose main purpose is to increase the distance between the improvised explosive device and the technical staff in charge of its dismantling.

The purpose is to provide a greater safety distance between the explosive device and the operator, minimizing the caused damage by the detonations effect.

CLEANING EQUIPMENT FOR MILITARY WEAPONS

Tactic Features

  • Easy transportation in the equipment,
  • Easy to handle and use,
  • Private use of the Military Forces,
  • Individual use per weapon,
  • Light and high resistant materials,
  • Specific design,
  • Easy and free acquisition with Indumil.

EXPLOSIVES & EMULSIONS

ANFO is a blend of ammonium nitrate and fuel oil sensitive to ignition with a Pentofex booster. Very safe in usage and handling. It can be manually or pneumatically loaded into boreholes.

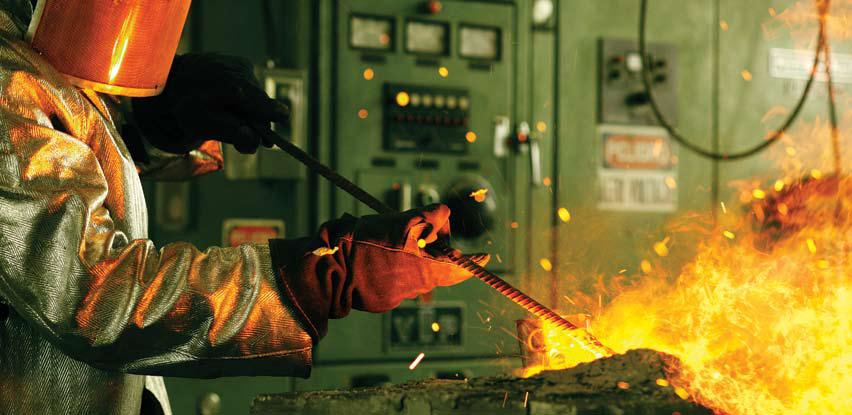

METALWORKING - CASTING

Installed Capacity

  • Electric arc furnace of 2,5 tons 2.000 kg per shift,
  • Induction furnace of 1,5 and 0,25 tons 5.000 kg per shift,
  • Manual molding,
  • Mechanical molding,
  • Gravity casted.

Manganese Steel

Types

  • Grade A,
  • Grade B1, Grade B2, Grade B3,
  • Grade C,
  • Grade C+Mo.

Products

  • Jaws,
  • Hammers,
  • Cones, mantels or linings,
  • Wings,
  • Sandbox rotors,
  • Crushing bars,
  • Classifying sieves,
  • Coverings or linings.

Characteristics

Material with austenitic properties characterized by acquiring hardness with cold working, impact and abrasion resistant, with high resistance to traction, elastic limit relatively low and high elongation percentage.

Applications

Used for the production of spare parts for mining industry, agroindustrial sector, cement and brick factories, sand and gravel deposits.

METALWORKING PRODUCTS

Carbon Steels
Types

  • AISI 1020,
  • AISI 1030,
  • AISI 1040,
  • AISI 1070,
  • ASTM A-27,
  • ASTM A-148.

Products

  • Axles,
  • Crankshafts,
  • Gears,
  • Pinions,
  • Bolts,
  • Endless screws,
  • Crow bars.

Characteristics
Steels with low mechanical properties, good welding qualities with heat treatment and highly resistant for general industrial purposes. Highly resistant to fatigue and torsion, has great tenacity and temperability qualities. Through the cementation process, pieces of high superficial hardness and abrasion resistance can be obtained.


Applications
For the production of spare parts for land and railroad transportation and for industrial machinery spare parts.

Gray Iron Products

  • Dies,
  • Machinery structures,
  • Flywheels.

Auto parts: brake disks, shields

  • Pulleys,
  • Frames.


Characteristics
Ductile material in which the graphite is presented in laminar form and is characterized by its machinability and surface hardness.


Applications
Manufacture of production in general, industrial equipment, machinery in the palm sector, agro-industrial, brick manufacturing, mining industry, industrial workshops, automotive industry and railroads.

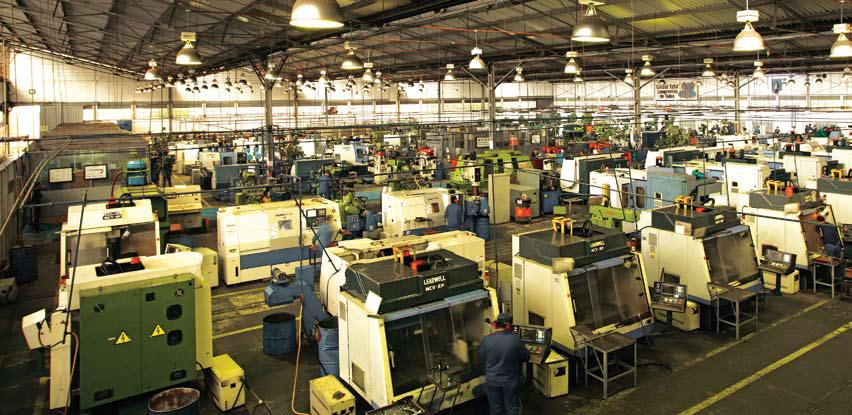

MACHINING

Installed capacity
Santa Barbara Factory (Sogamoso - Boyaca)

(6) Numeric control lathe,
(4) Machining center,
(4) Milling machine,
(1) Gurutzpe lathe,
(1) Milling machine,
(3) Vertical lathe,
(5) Beckler automatic lathe,
(8) Horizontal lathe.

Jose Maria Cordova Factory (Soacha - Cundinamarca)

(35) Vertical machining centers,
(15) Numeric control lathe,
(9) Parallel lathe,
(1) Special lathe for tool machining,
(5) Milling machine,
(2) EDM machine,
(1) Pantograph,
(9) Sharpener,
(7) Grinding machine,
(2) Polishers,
(1) Plane,
(1) Chisel sharpeners,
(1) Mechanical hacksaw,
(1) Saw sharpener,
(1) Drill sharpener,
(1) Profile projector.

HEAT TREATMENT

Installed capacity
Santa Barbara Factory (Sogamoso - Boyaca)

  • TKF Furnace 3.000 kg (width: 1,25 m x length: 3 m x height: 1,5 m),
  • Gas furnace 4.000 kg,
  • Vault furnace IWK 500 kg (width: 1,2 m x length: 0,22 m x height: 1,5 m),
  • Muffle furnace (width: 0,55 m x length: 0,4 m x height: 0,9 m).

Jose Maria Cordova Factory (Soacha - Cundinamarca)
Salt furnace: pieces up to 50 kg


(4) Hard and tempering in salt baths,
(3) Isothermal treatments,
(3) Liquid cementation.

Induction Equipment: pieces up to 10 kg

(3) Heat treatment by induction,
(2) Welding by induction.

Controlled atmosphere furnace
(1) Gaseous cementation,
(1) Annealing,
(1) Hardening.

SURFACE TREATMENT

Installed Capacity

Santa Barbara Factory (Sogamoso-Boyaca)

  • Phosphating: 2.500 kg/day,
  • Anodizing: 155 kg/day,
  • Cadmium chromium: 180 kg/day,
  • Electrostatic painting: 2.700 kg/day.

Jose Maria Cordova Factory (Soacha-Cundinamarca)

  • Phosphating: 420 kg,
  • Nickel-plated: 20 kg,
  • Chromed: 20 kg,
  • Electrostatic painting: 20 kg,
  • Shotpeened and lubricated: 150 kg,
  • Bronzed in ferrous alloys: 20 kg.

MICROCASTING

Science, technology and development, is the perfect gearing that leads towards the quantitative and qualitative improvement of all, widening horizons, of which Colombia’s Military Industry is thoroughly conscious about and in which should assume and important role.

Thinking on it, in 1990 was installed the first plant for microcasting, which constituted a true technological advance in the production of necessary products for the development of the country, not only assisting the national defense sector, but the private industrial sector in many different fields.

The operation of this new plant implies cost savings for the country, due to the substitution of imports, and contributes to the generation of direct and indirect employment, increasing participation in the gross national product and consequently on the national income.

What is Microcasting?
Microcasting is a production process of pieces sufficiently precise to satisfy design tolerances with little or without further machining. This provides greater flexibility in the development of prototypes as well as the normal production pieces.

This process is also known as “precision casting”, having a natural application in the production of pieces of low weight and intricate geometric form, thus reducing the post-machining costs.

The possibility of alloy selection including ferrous and non-ferrous metals, allows the access to more than 200 different options that are available without restriction. This combined with the appropriate heat treatment, will offer excellent mechanical properties to the produced pieces.

INDUMIL - Industria Militar

  • Calle 44 Nº 54 11, Bogota, Colombia
  • +57 1 220 7800
  • (57-1) 2225786
Add to favorites
